Merging Realities: Mixed Reality and Digital Twins in Architecture and Construction

Introduction

  • Examines the transformative potential of integrating mixed reality (MR) technologies with digital twins.
  • Focuses on the architecture, construction, and urban and infrastructure planning sectors.
  • Explores the applications of this integration.
  • Presents a case study of the Headington Hill building in Oxford.
  • Discusses future directions.

Mixed Reality Technologies in the Built Environment

Mixed reality (MR) technologies are really changing how we interact with the world around us, especially in the built environment. Instead of just seeing things as they are, MR blends digital content right into our physical surroundings. Think about it: augmented reality (AR) takes digital information and overlays it onto what we already see. So, in architecture and construction, we can use AR to visualise design plans right there on the construction site, or to see building information laid out over the existing structure. It can even guide workers in real-time as they're building. Virtual reality (VR) is a bit different. It puts you in a completely digital world, which is incredibly valuable for architects to visualise their designs and for clients to really experience a space before it's even built. It's also a great tool for getting everyone involved in a project on the same page. Then you have extended reality (XR), which is a broader term that includes AR, VR, and everything in between. XR is all about creating a whole spectrum of experiences, from the totally virtual to the totally real, and it has the potential to really transform every stage of a building's life.

Integrating MR with Digital Twins

When we combine MR technologies with digital twins, that's where things get really interesting. Digital twins give us a dynamic and super-accurate virtual model of a physical thing, whether it's a building or a whole city. MR, on the other hand, gives us these really intuitive and immersive ways to actually interact with that model. For architecture, this means architects can visualise their designs in the actual context of the real world using AR. You can walk around a site and see exactly how the building will look, which gives you a much better understanding of its impact. VR lets you step inside a design at full scale, which makes design reviews way more immersive and helps everyone involved make better decisions. Plus, MR, especially VR, makes collaboration much easier, allowing stakeholders to work together in a shared virtual space. In construction, MR and digital twins can really improve things on-site. AR can overlay all the building information you need, like structural details and MEP systems, directly onto the construction site. This improves on-site visualisation and gives workers real-time instructions and guidance, making the whole process more accurate and efficient. And if you're not on-site, you can use VR and AR to monitor progress remotely and spot any potential issues. Urban and infrastructure planning can also benefit big time. MR allows planners to visualise proposed developments in the existing cityscape using AR. You can see how new buildings and infrastructure will fit in, which helps everyone understand the impact of those developments. VR and AR can also be used to create interactive simulations of future developments, which is a great way to get citizens involved in the planning process and gather feedback. And when it comes to managing infrastructure, AR can help visualise things like underground utilities, making maintenance and repairs much easier.

Headington Hill Building-Oxford: Case Study

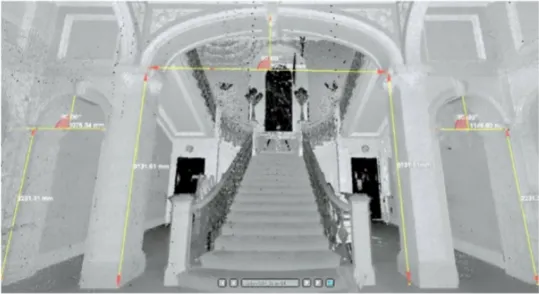

The Headington Hill building in Oxford, a heritage-listed structure, provides a compelling case study for the application of MR and digital twins. The building, with its rich history and unique architectural features, presented a challenge in terms of preservation and ongoing maintenance. Laser scanning technology was employed to capture the building's intricate details, both interior and exterior, creating a highly accurate and detailed digital model. This process went beyond traditional surveying methods, capturing not just the building's geometry but also its surface textures and material properties.

  • VR Experience:
    Virtual reality (VR) can be used to create immersive experiences that allow users to explore the building's history and architecture in a way that transcends physical limitations. For instance, visitors can take virtual tours of the building at different points in its history, experiencing how spaces have evolved over time. This can be particularly valuable for educational purposes and for promoting heritage awareness.
  • AR Applications:
    Augmented reality (AR) can overlay digital information onto the physical building, providing visitors with contextual information directly within their field of view. Imagine walking through the Headington Hill building and using an AR-enabled device to see historical photographs overlaid on the present-day structure, or accessing archival documents and architectural drawings that appear as virtual layers on the walls. This technology can greatly enhance the visitor experience and provide a deeper understanding of the building's significance. Furthermore, AR can be a valuable tool for on-site maintenance, allowing workers to visualise hidden structural elements or building systems.
  • Digital Twin Integration:
    The laser-scanned model can be integrated into a comprehensive digital twin of the building. This digital twin goes beyond a static 3D model; it becomes a dynamic and evolving repository of information about the building. It can be linked to building management systems, sensor networks, and other data sources to provide a holistic view of the building's performance and condition.
    • Facilities Management:
      By integrating data on building systems (HVAC, electrical, plumbing) into the digital twin, facilities managers can monitor their performance in real-time, optimise energy consumption, and schedule maintenance proactively. AR interfaces can then be used to visualise this information on-site, allowing technicians to quickly locate and diagnose problems.
    • Maintenance and Repair:
      The digital twin can serve as a central repository for all information related to the building's maintenance history, including past repairs, materials used, and structural assessments. This information can be invaluable for planning future maintenance and repairs, ensuring that work is carried out efficiently and effectively. AR can be used to guide workers through complex repair procedures, overlaying digital instructions onto the physical building components.
    • Structural Health Monitoring:
      By integrating sensor data from the building into the digital twin, it becomes possible to monitor its structural health in real-time. This can help detect early signs of deterioration or damage, allowing for timely interventions and preventing costly repairs.

The Headington Hill Building case study demonstrates how the integration of laser scanning, MR, and digital twins can transform how we interact with and manage heritage structures. It highlights the potential of these technologies to enhance visitor experiences, improve building operations, and ensure the long-term preservation of our architectural heritage.

Future Directions

Even though we're still in the early stages of integrating MR and digital twins, the potential for the future of architecture, construction, and urban planning is huge. Future research and development should really focus on:

  • Making MR interfaces more intuitive and user-friendly so that everyone can easily interact with digital twins.
  • Improving the accuracy and real-time capabilities of the data in digital twins.
  • Exploring new applications of MR and digital twins, like using them for preserving cultural heritage, designing smart cities, and creating buildings that can adapt and respond to their environment.
  • Looking at how XR can improve collaboration and communication between all the different people involved in a project.

By really digging into the synergies between MR and digital twins, we can unlock a whole new world of possibilities for creating built environments that are not only more engaging and efficient but also truly sustainable.
